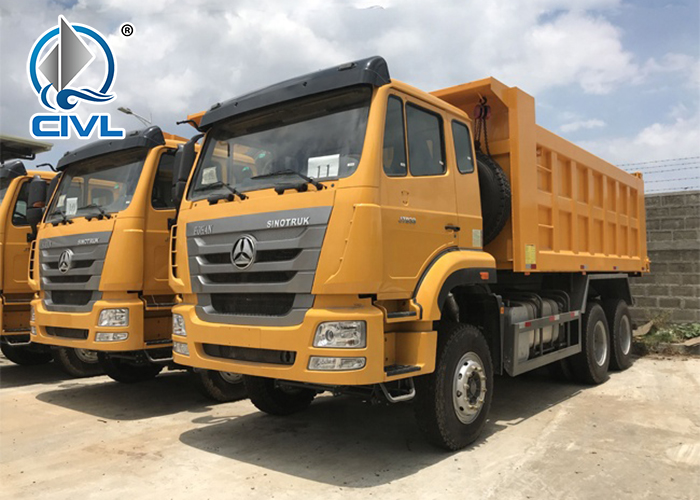

Hohan 10 ruedas gran capacidad de carga camión volquete / volquete / volquete /
Nombre de producción: Camión volquete de gran capacidad de carga
Aspecto lujoso, majestuoso y dinámico.
- Última cabina de estilo internacional: cabina tipo Euro.
- Linterna frontal de cristal y montada en posición vertical
Diseño confiable y de alta seguridad
- Estabilidad lateral: diseño de marco patentado y a medida
--Seguridad y fiabilidad: tambor de ruptura de nuevo tipo.
Bajo consumo de combustible y alta eficiencia.
- MOTOR HOMBRE ALEMÁN
Especificación:
Truck Model
|
CVZZ3257N3647A (LHD)
|
Truck Brand
|
SINOTRUK –HOWO
|
Dimension(Lx W xH)(unloaded)
|
8145x2496x3170
|
Cargo body size (L*W*H, mm)
|
5400x2300x1200
|
Cargo body thickness(mm)
|
bottom:8mm, side:6mm,
|
Lift type of Carriage
|
Ventral lifting
|
Approaching angle/Departure angle(°)
|
19/26
|
Overhang(front/rear) (mm)
|
1500/1793
|
Wheel base (mm)
|
3625+1350
|
Max speed(km/h)
|
75
|
Curb weight(kg)
|
12010
|
Loading Weight(kg)
|
25000
|
Fuel tanker capacity
|
300L with locking fuel cap
|
Fuel consumption(L/100km)
|
32
|
Clutch
|
Single-plate dry clutch Φ420mm
|
Engine Model
(Steyr technology, made in China)
|
Model
|
WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
|
Horse Power, max(kw/rpm)
|
336HP,247/2200
|
Emission Standard
|
EURO II
|
Transmission
|
Model
|
HW 15710,10 forwards and 2 reverse
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
Auxiliary brake
|
Engine exhaust brake
|
Steering system
|
Model
|
ZF8118 hydraulic steering with power assistance
|
Front axle
|
HF9 , Steering with double T-cross section beam
Loading capacity:9000KG
|
Rear axle
|
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels
|
Color
|
Optional
|
Tire
|
12.00R20 radial tyre
|
Electrical system
|
Operating voltage
|
24V,negative grounded
|
Starter
|
24V,7.35KW
|
Alternator
|
28V,1500W
|
Batteries
|
2*12V.165Ah
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
|
